A Classic Motor Launch Perfect for Longer Trips and Bigger Waters

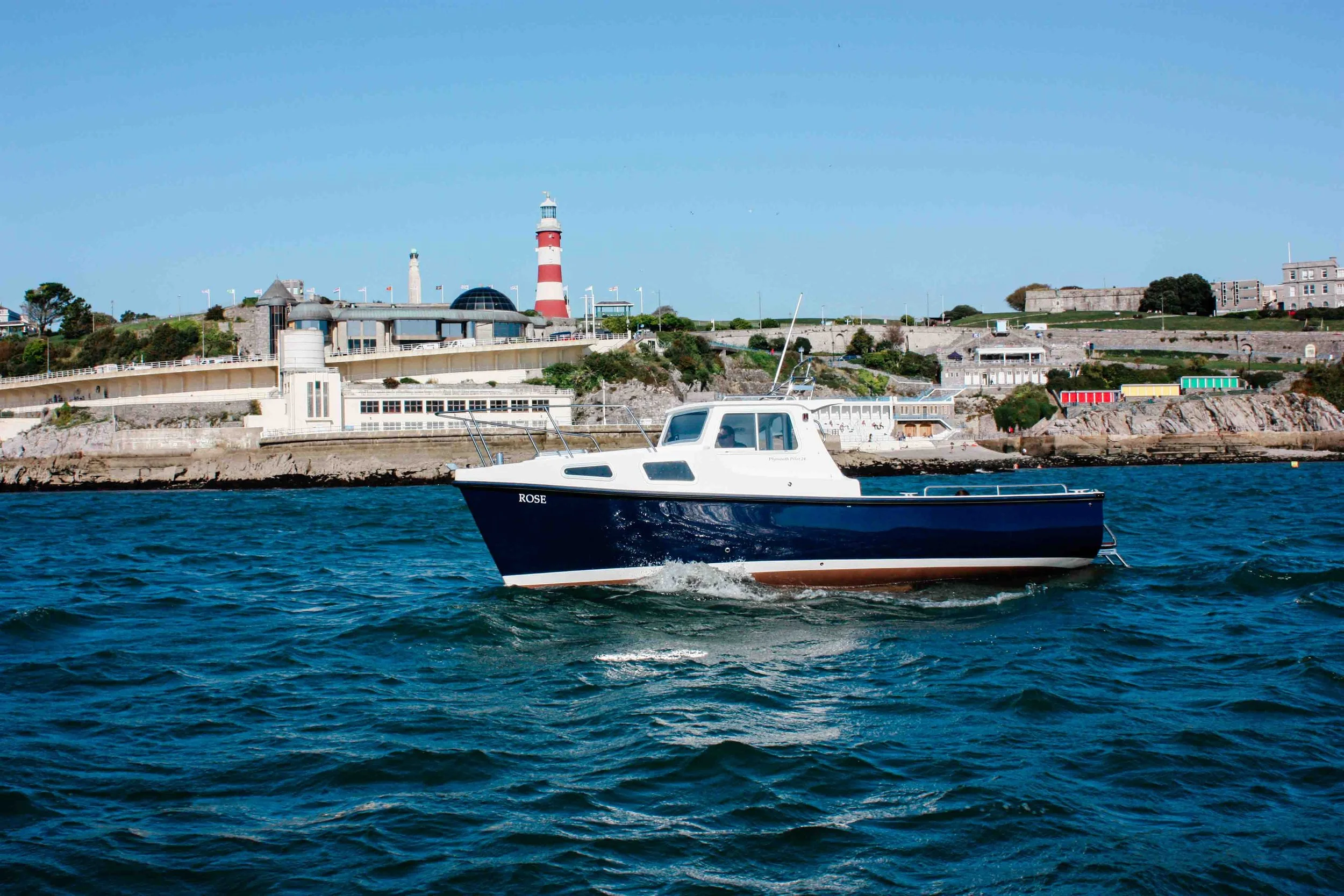

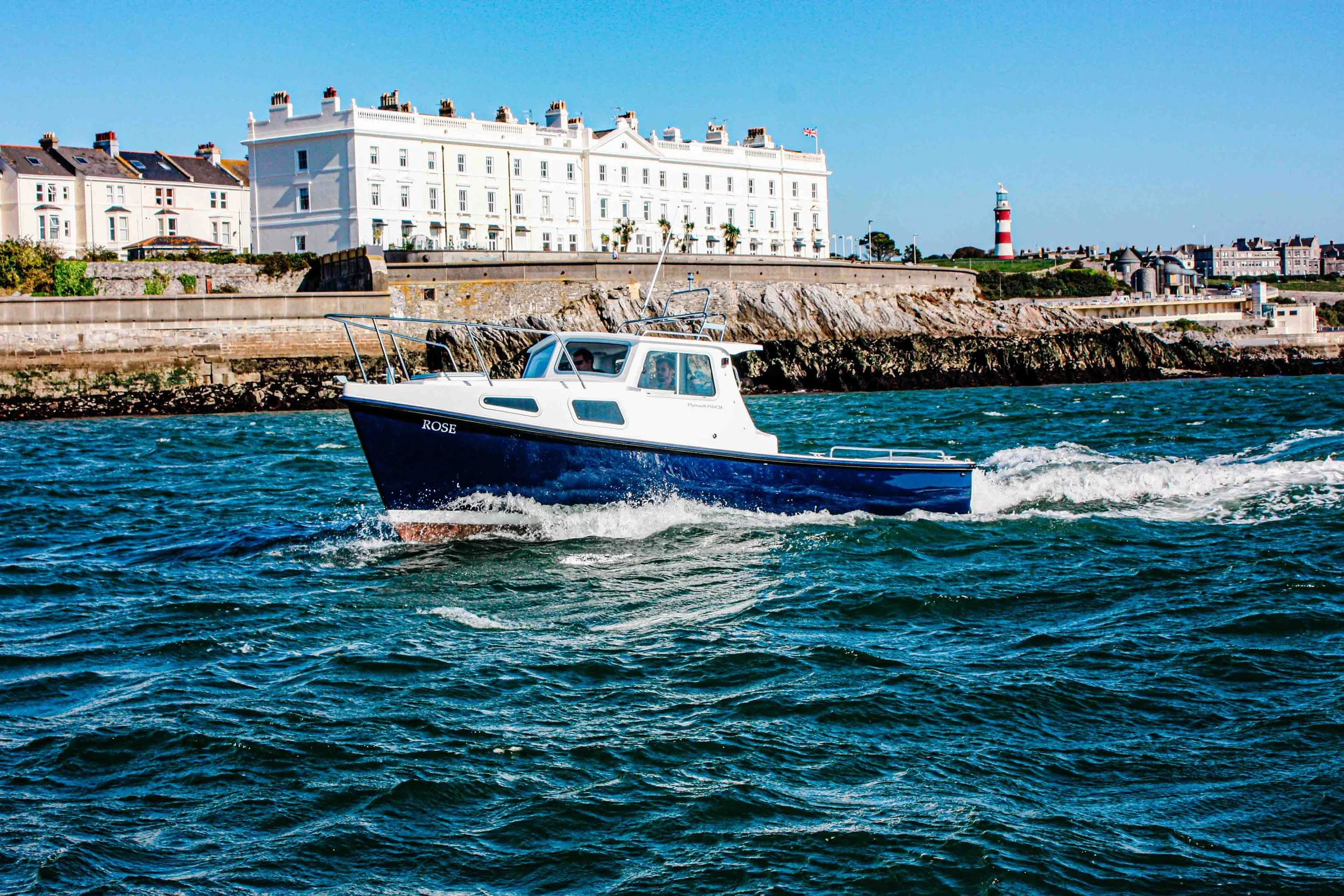

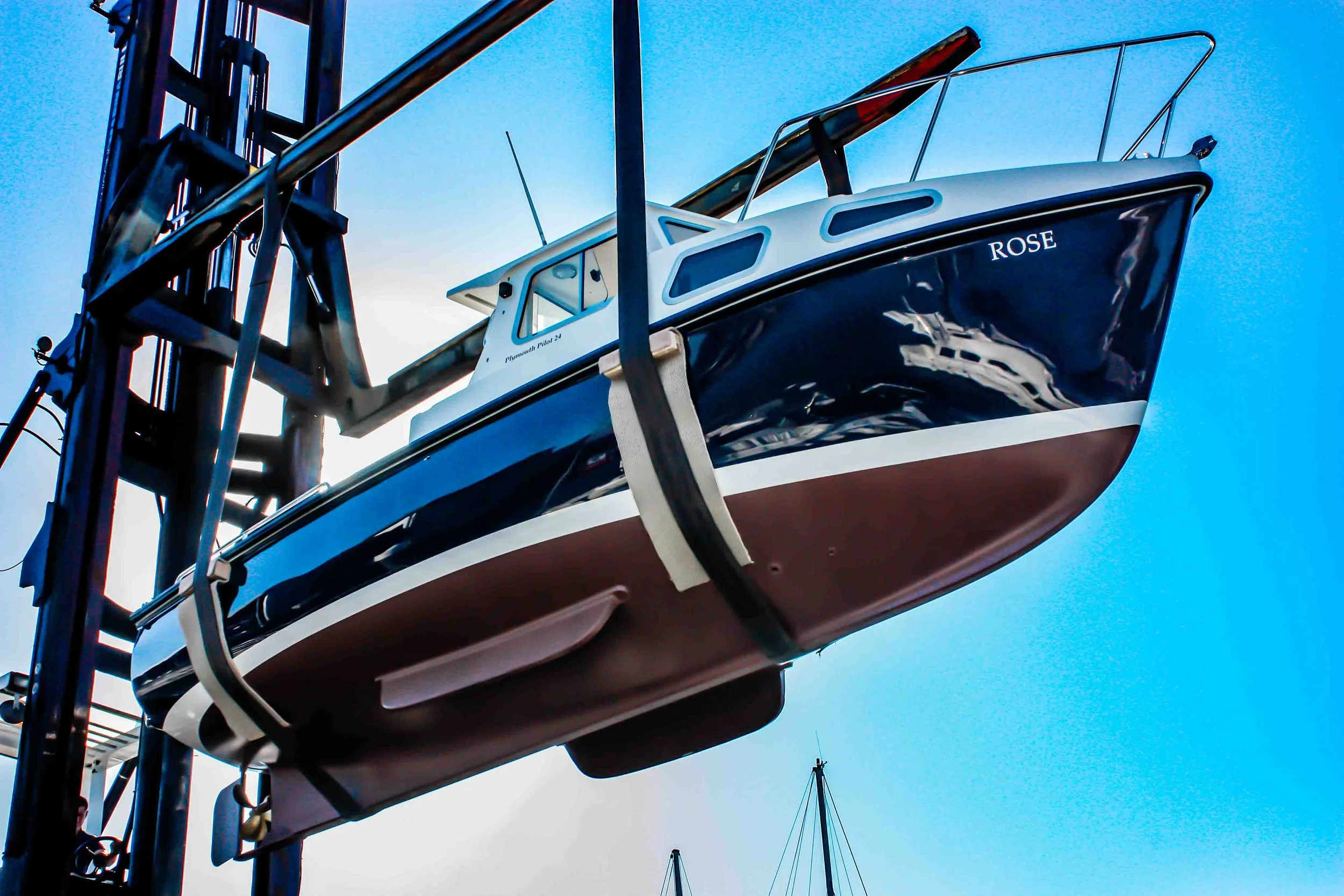

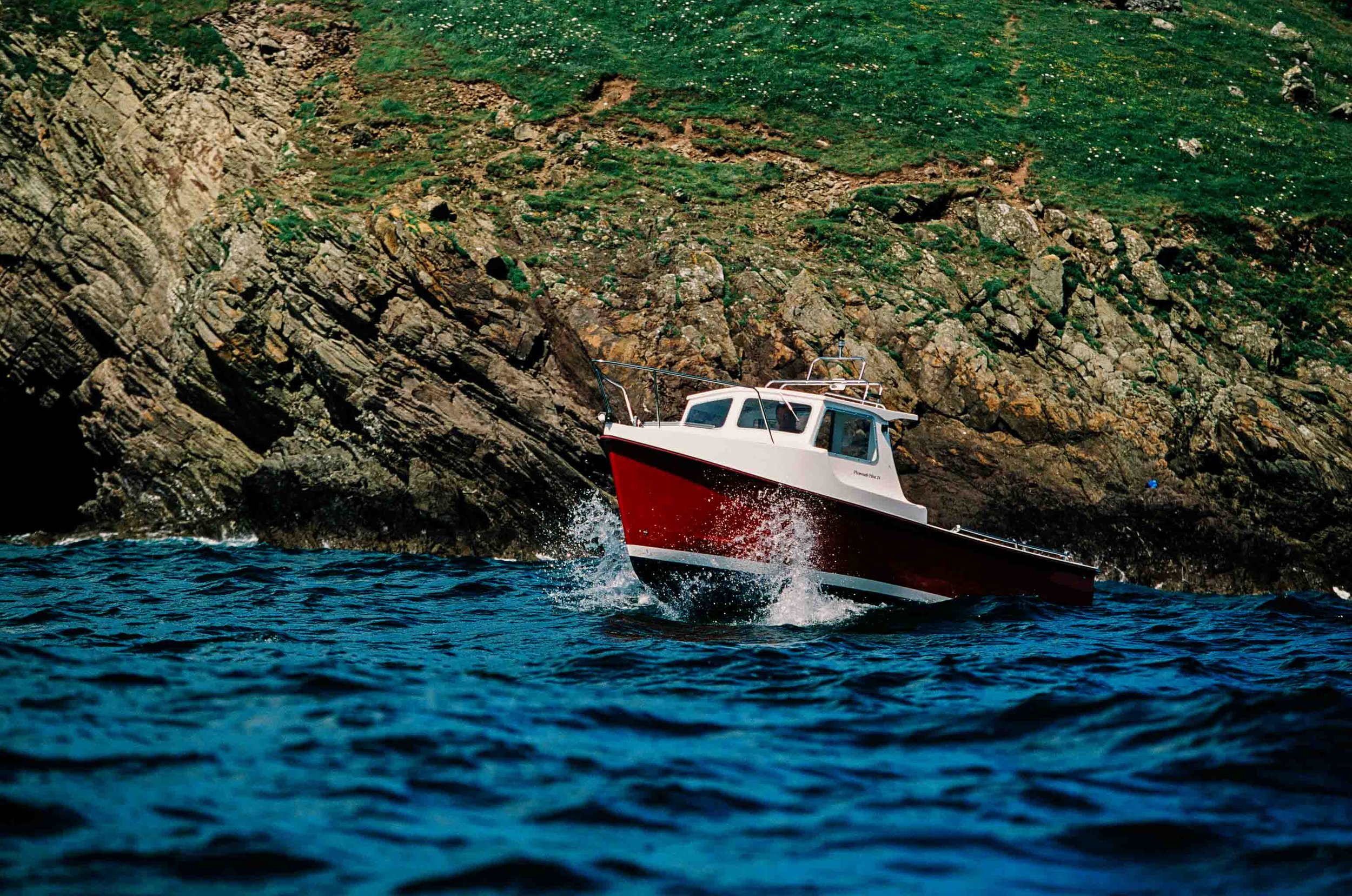

The Plymouth Pilot 24’
The largest in our range, the 24 is a commanding yet classic motor launch — ideal for longer trips, bigger waters and boaters who want space without the fuss.
-
Length (overall) - 23’10” (7.24m)
Beam - 8’5″ (2.79m)
Draft - 2’6″ (0.76m)
Gunwhale Height - 2’6” (0.76m) -
Engine Size - 20 - 54Hp
Speed (approx) - 7.5kts -
Weight inc. ballast (approx) - 2.4t (2400Kg)
-

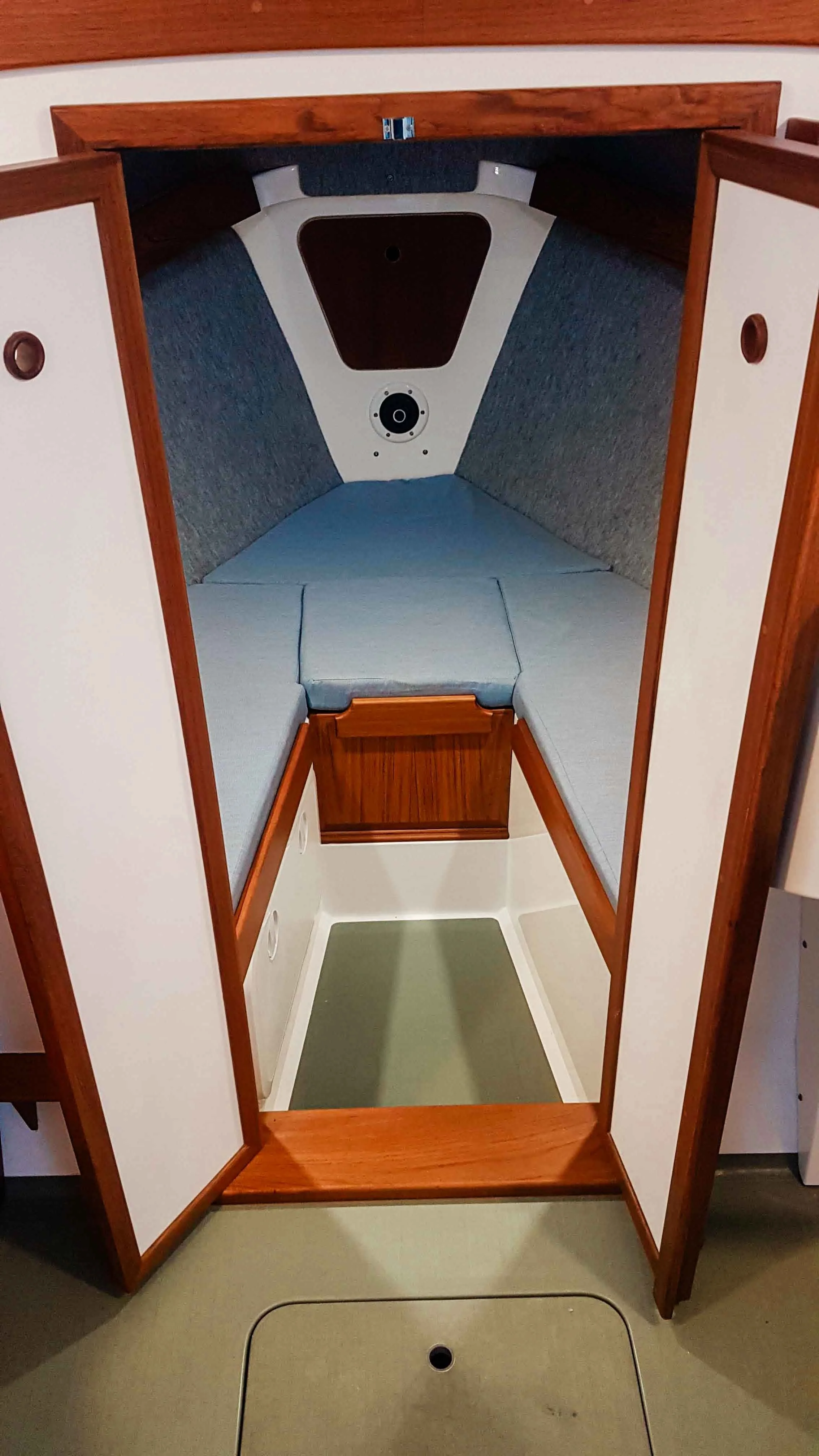

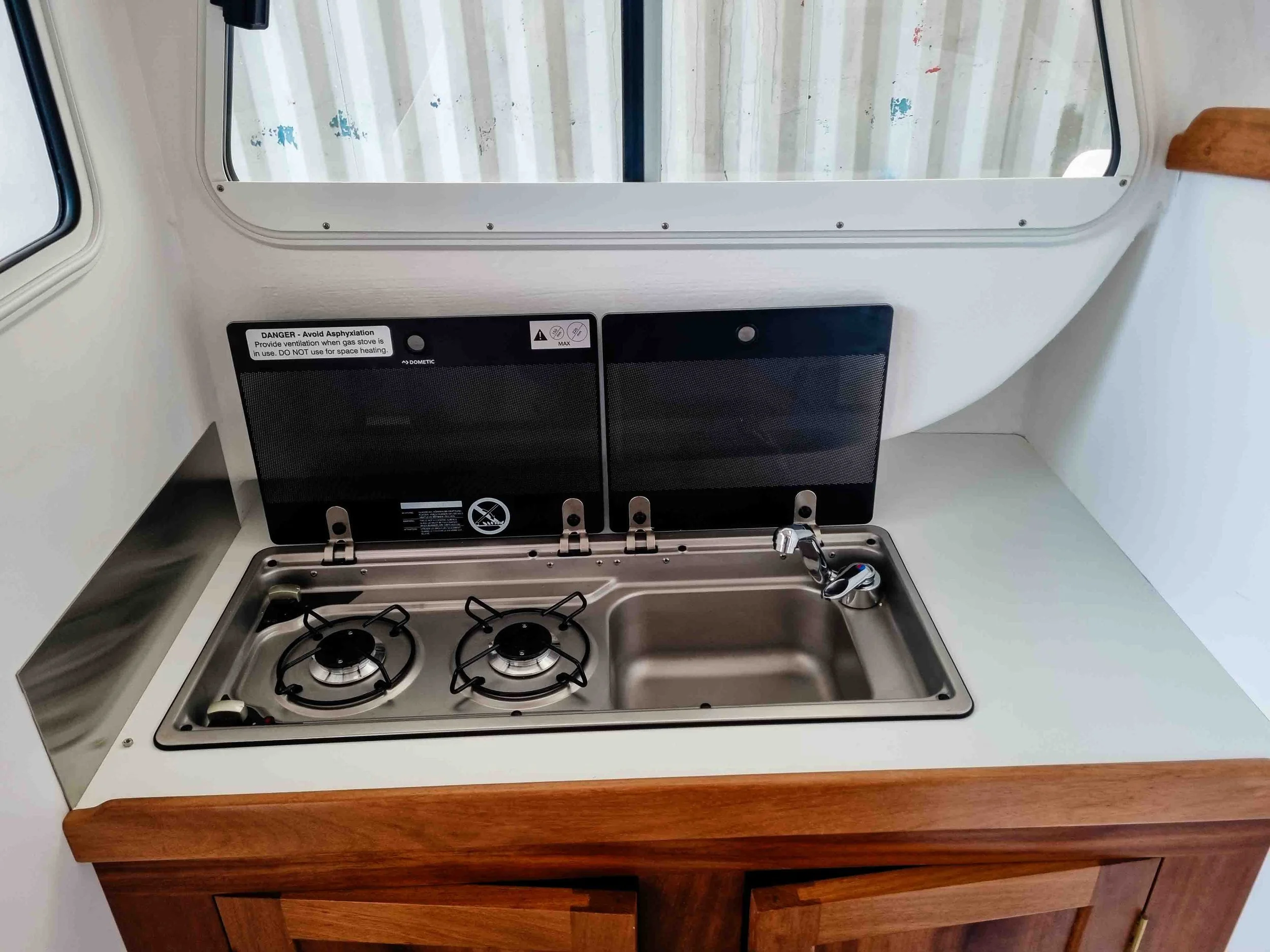

Available in 4 configurations i.e. open boat, short angling wheelhouse (suitable for anglers, sailing clubs, water taxis and those wanting the largest amount of deck space), day angling wheelhouse (the best of both worlds – deck space and limited accommodation for those who won’t be staying aboard but want some cabin space), weekender wheelhouse (perfect for a weekend getaway, the cabin provides a v berth, portable heads with the option for a small galley). n
-
PLYMOUTH PILOT 24’ - Open
Standard specification includes
Choice of hull colour
Bow locker/seat
2 locker/seats in aft quarters.

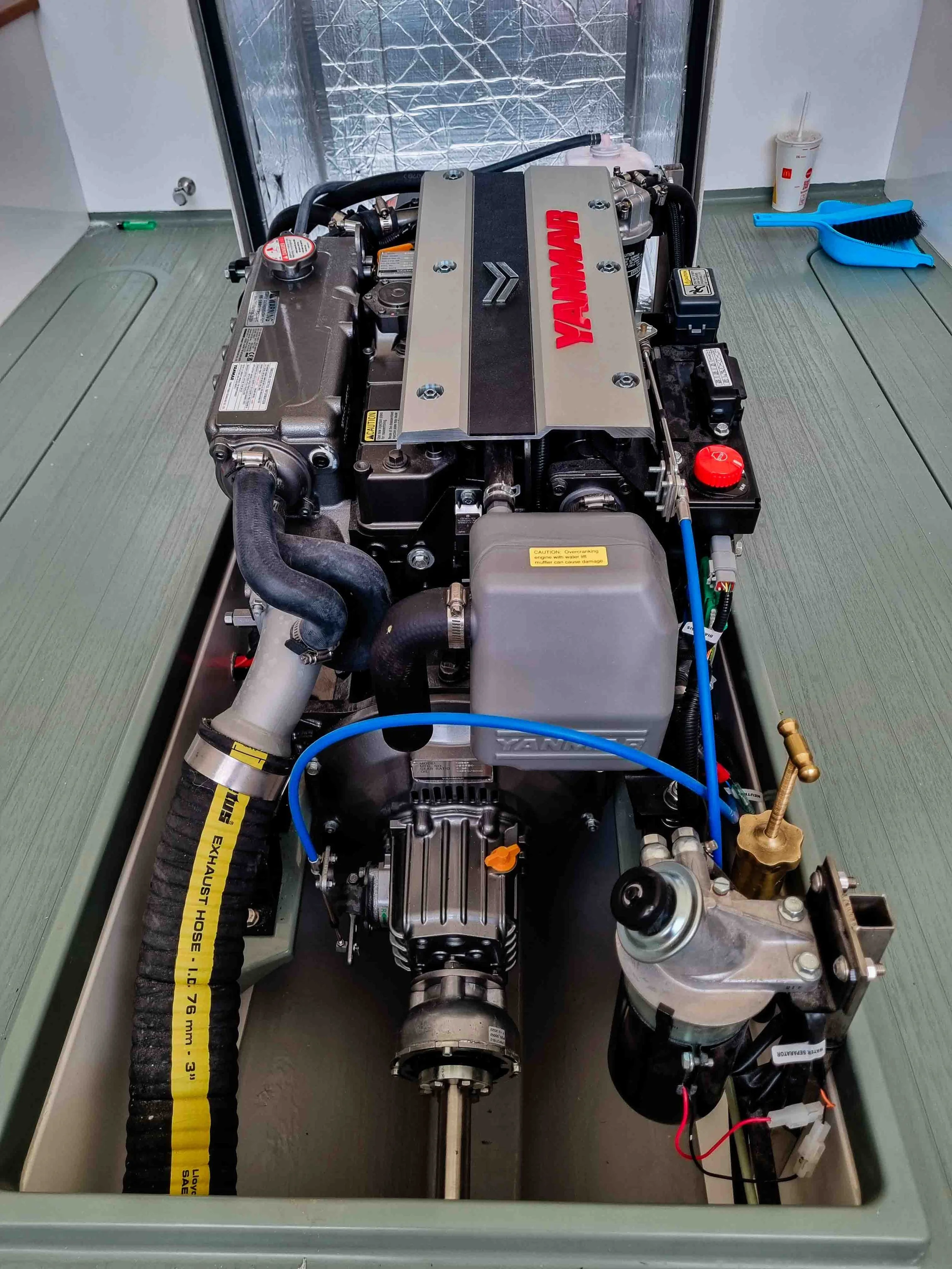

Glass fibre engine box, lined with soundproofing insulation and fitted with stainless steel hinges and lifting handle.
Access hatches to centre bilge and bilge keels.
Glass fibre aft bulkhead and centre door
Manual Bilge pump
3 stainless steel mooring bollards.
4 stainless steel fairleads.
Iroko or PVC rubbing strake
Beta Marine 38hp diesel engine.
77l fuel tank and associated pipes.
Antifouled to a colour of your choice.
Starting price £78,153.96

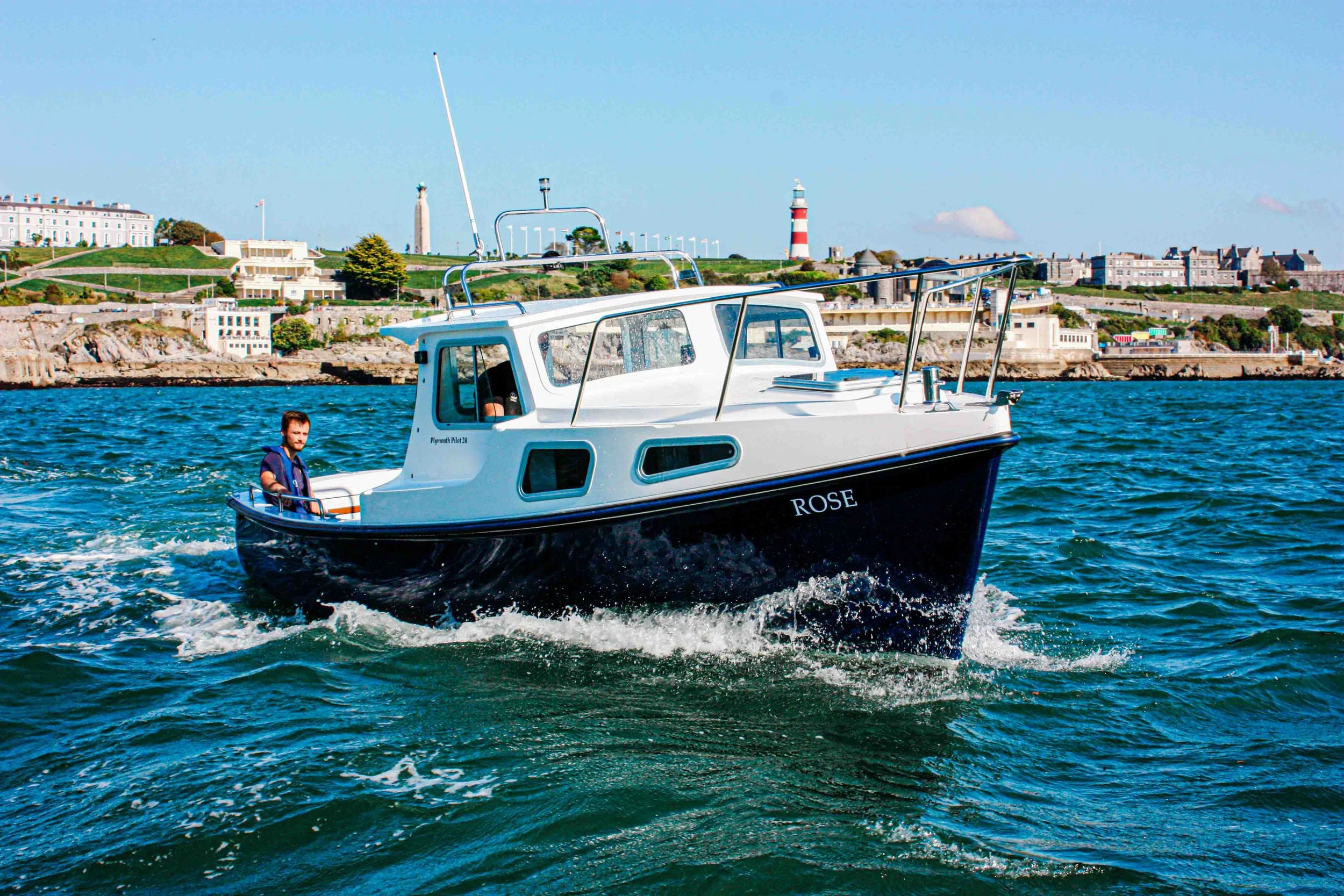

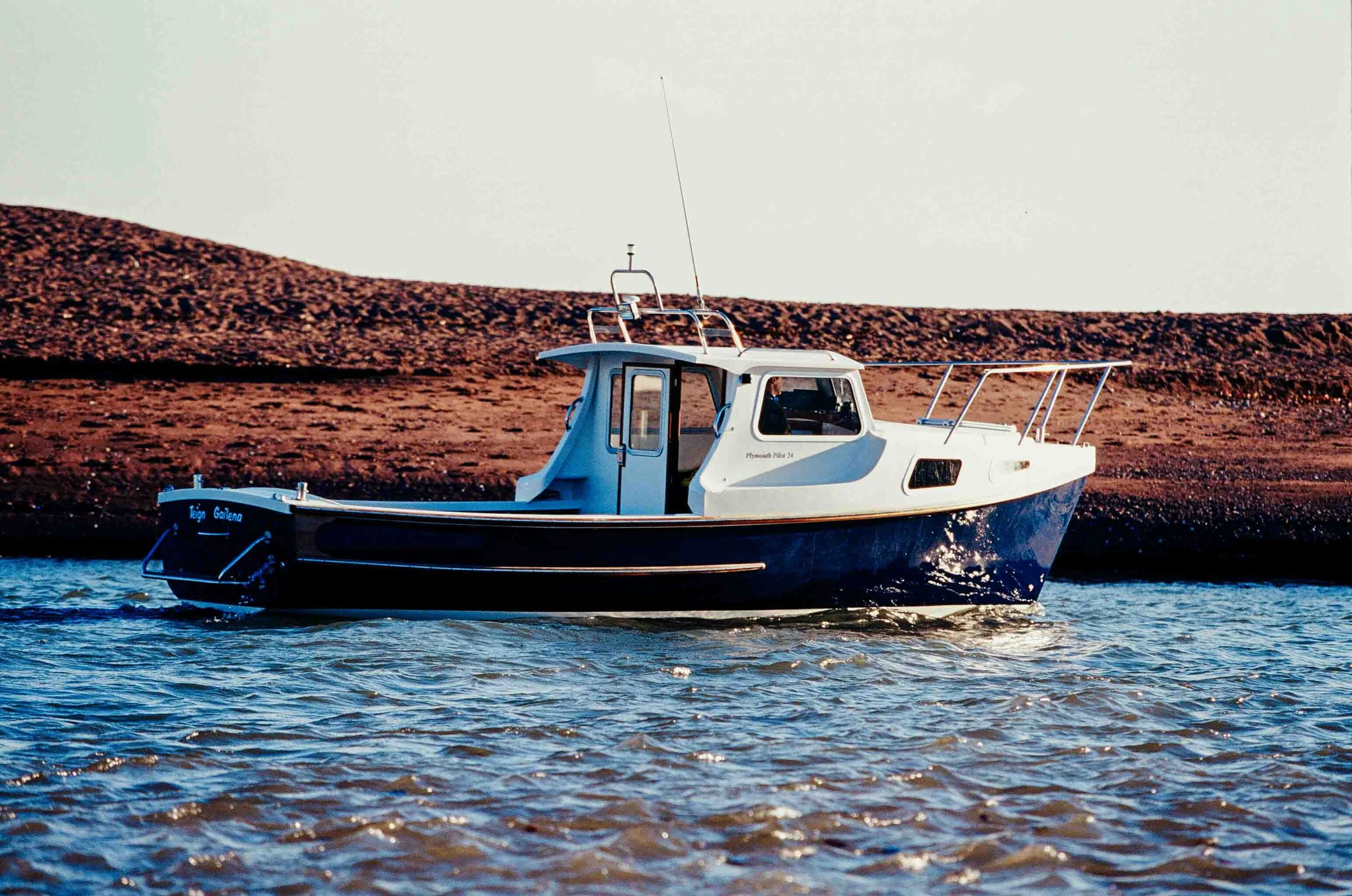

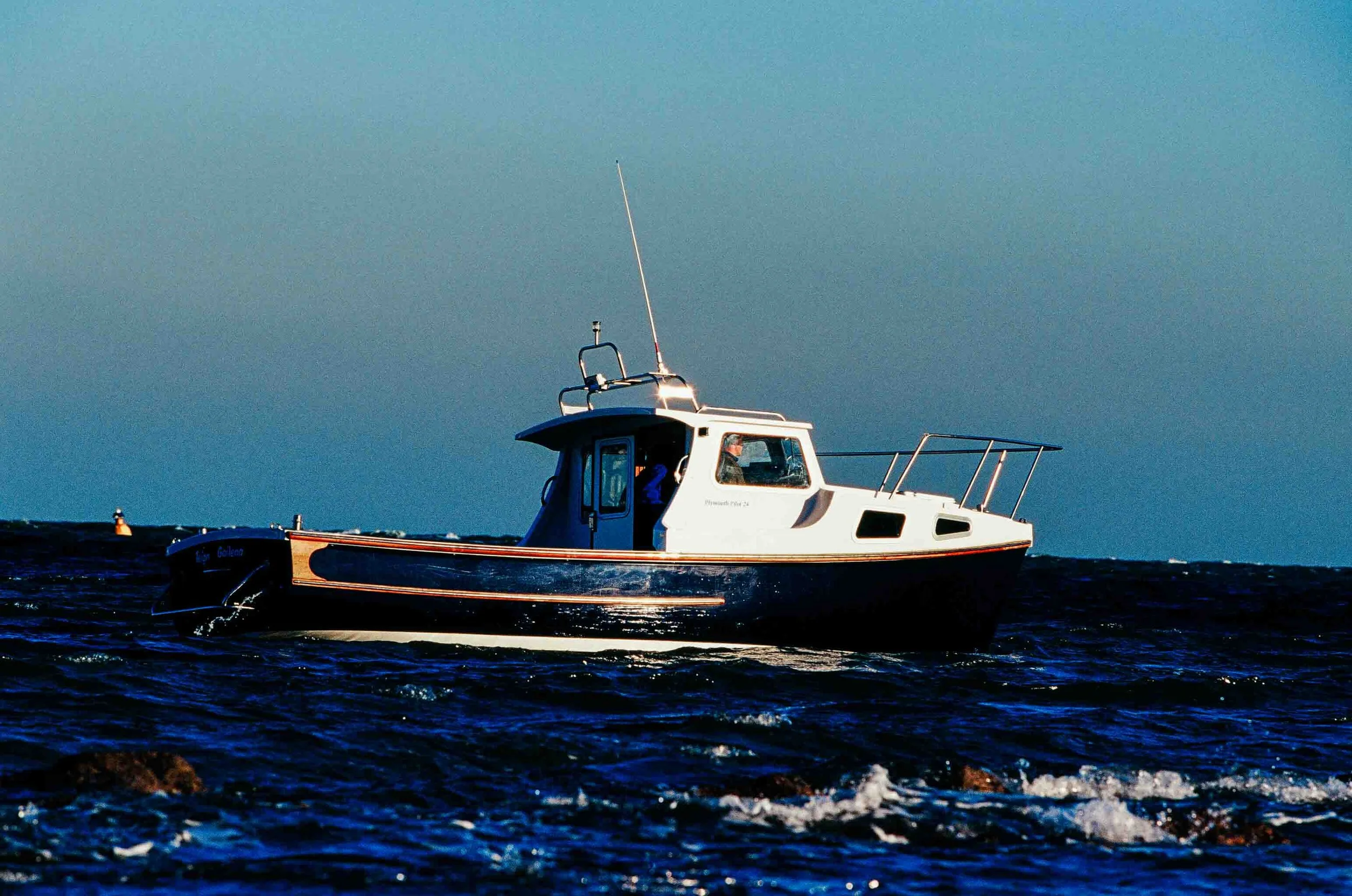

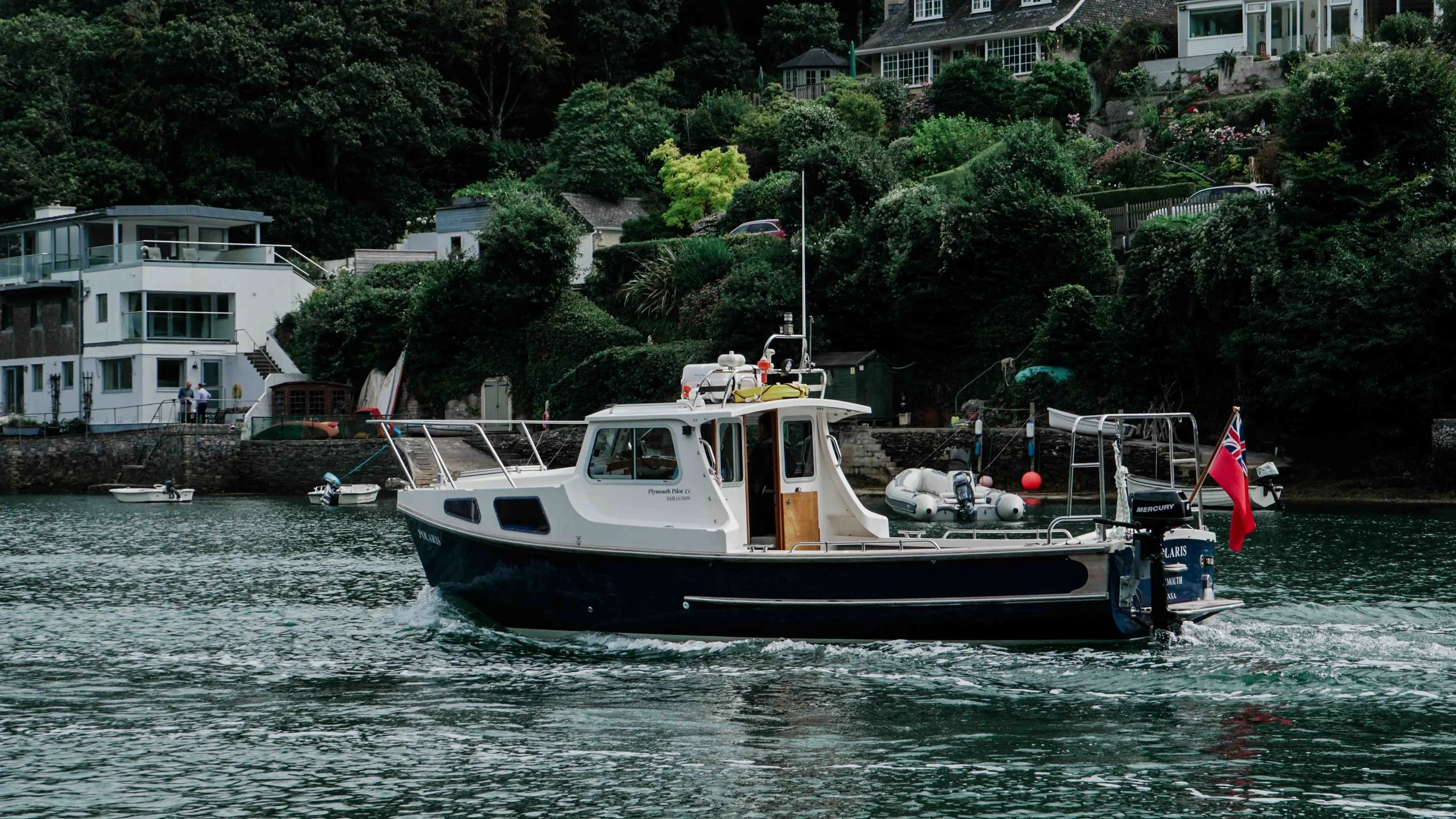

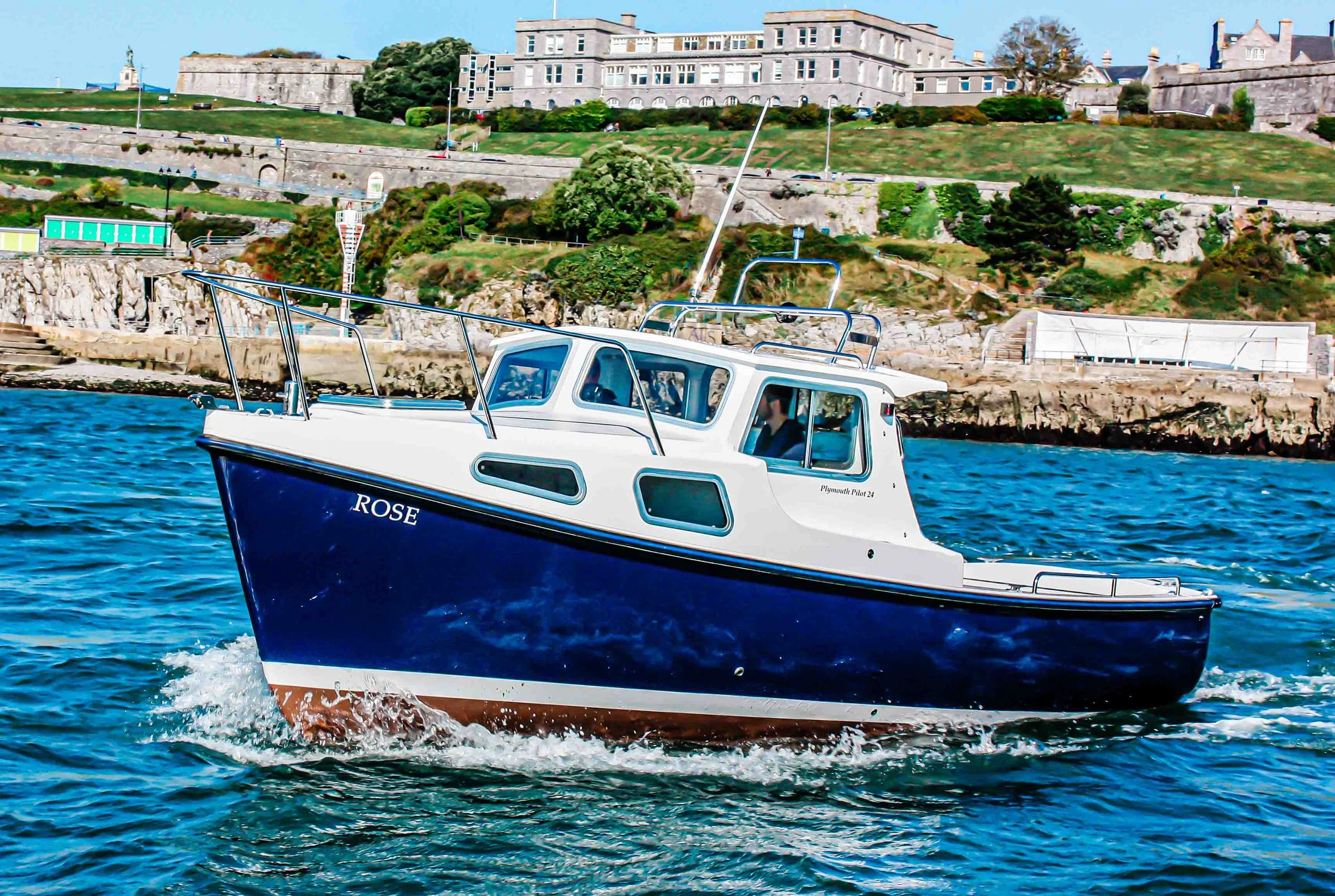

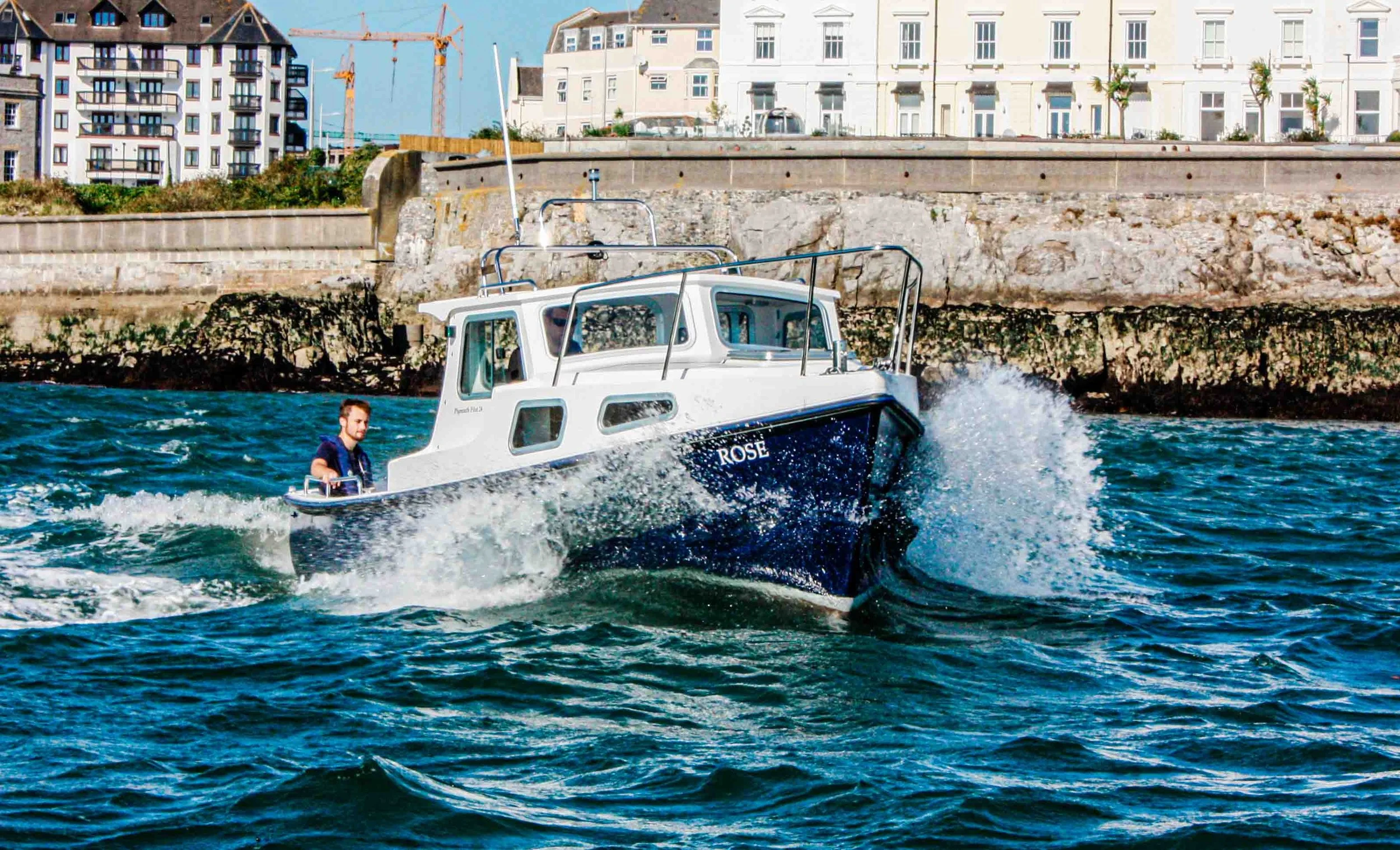

PLYMOUTH PILOT 24’ – with Wheelhouse
Choice of hull colour
Aluminium framed, toughened glass windows to wheelhouse and main bulkhead.
Glass fibre front bulkhead
Divided centre door to cabin

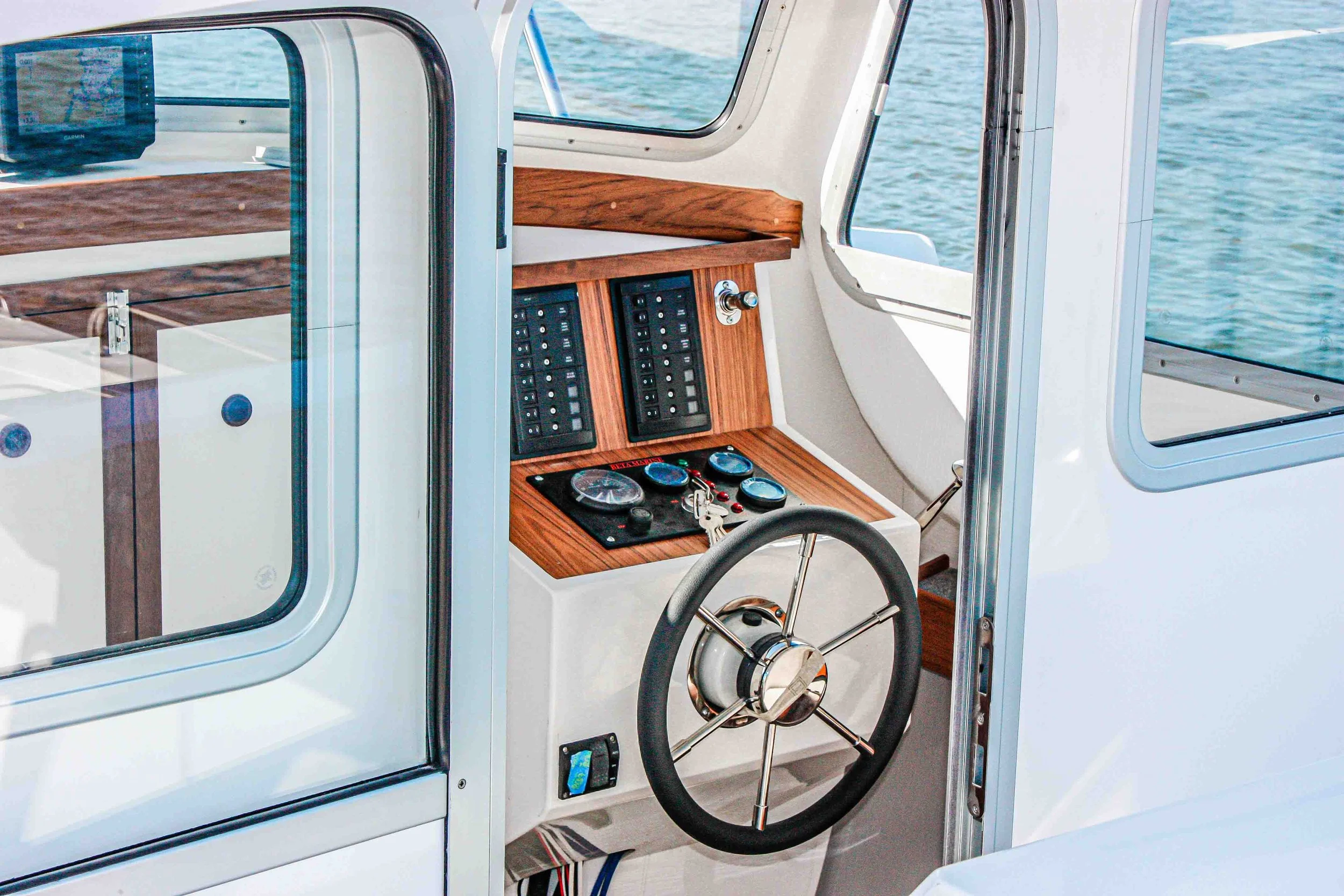

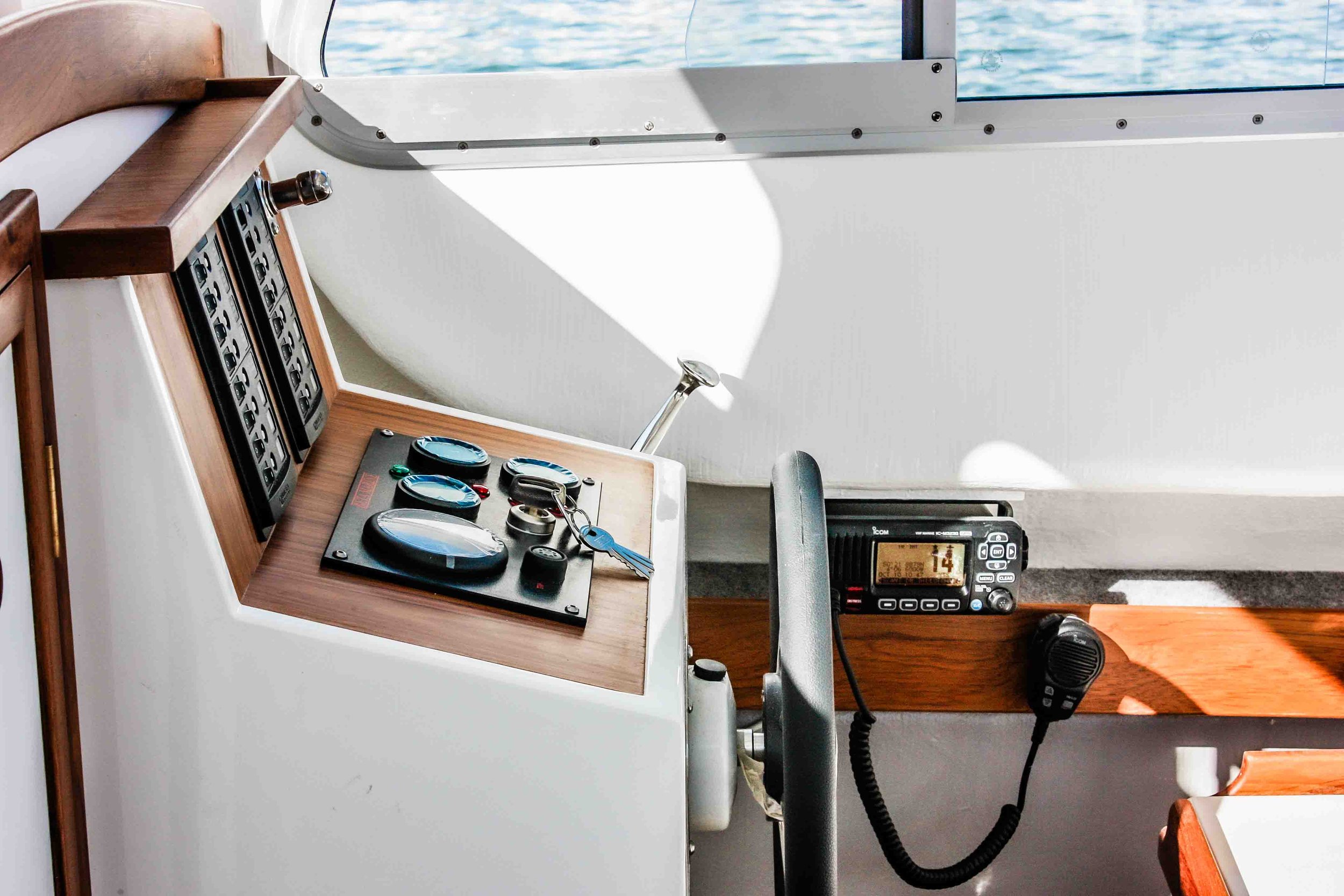

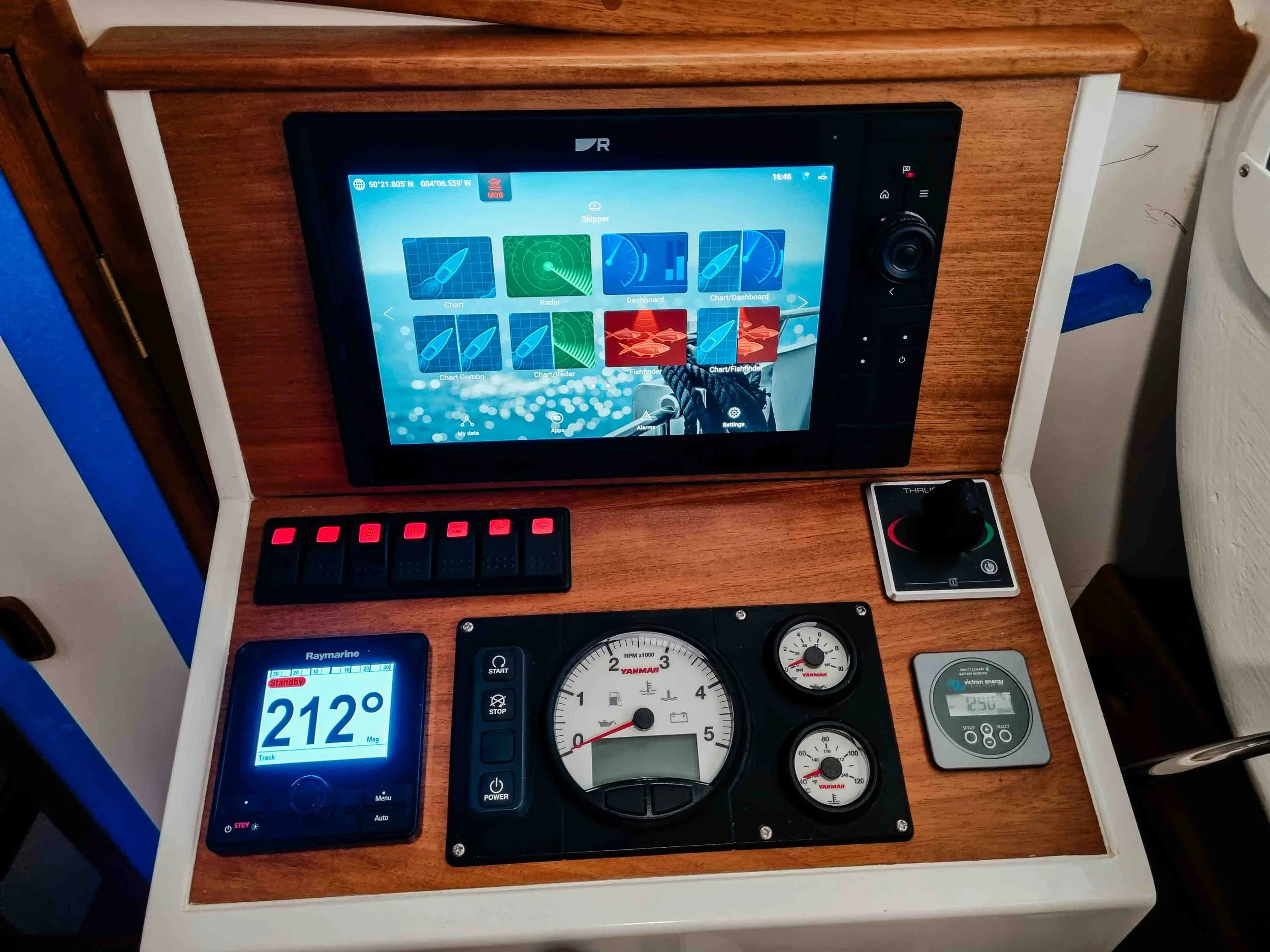

Glass fibre console, mounted port or starboard with engine instrument and switch panels.
Single engine lever control.
Hydraulic steering with soft touch wheel.
2 day/night cabin lights
Lifting centre floor hatch with access to dry bilge / storage space.
Wheelhouse main bulkhead in glass fibre with a choice of offset or centre opening.
2 locker/seats aft side of main bulkhead.
2 locker/seats in aft quarters.
Glass fibre engine box, lined with soundproofing insulation and fitted with stainless steel hinges and lifting handle.
Manual Bilge pump.
3 stainless steel mooring bollards.
4 stainless steel fairleads.
2 stainless steel grab handles mounted on aft wheelhouse combings.
2 stainless steel handrails mounted on top of wheelhouse coach roof.
Iroko or PVC rubbing strake
Beta Marine 38hp diesel engine.
77l fuel tank and associated pipes.
Inboard mounted rudder
Antifouled to a colour of your choice.
Starting price £92,248.00
As the largest of the three boats, the 24’ Plymouth Pilot is very popular as a committee or club boat as well as with recreational users wanting to spend longer periods on the water. The extra space affords a number of configuration options and increased flexibility in fitout, making it a true ‘get away from it all boat’ for the seasoned recreational boater.
The Pilot 24’ is built with the same level of finish expected in our smaller boats. It can be supplied either open or with up to three wheelhouse options – the Short Angling Wheelhouse, the Day Angler or the bigger Weekender Wheelhouse that can be open or enclosed with an aft bulkhead. This boat can also be fitted with a stainless steel inboard mounted rudder to reduce normal maintenance levels further.
Whether for recreational or professional use, our high standards of custom fitting with ensure your Pilot 24’ will be everything you expect and more, for many years to come.
